Arduino ile Karasimsek Projesi

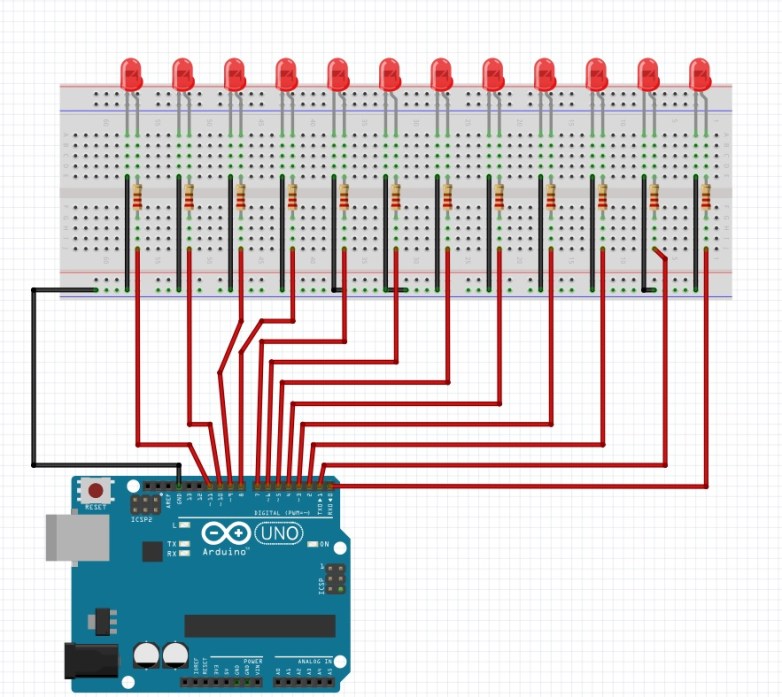

– Malzemeler:

• 12 tane  led .
• 12 tane 220 ohm direnç
• 1 tane Breadbord  ve yeteri kadar jumper kablolar.
• Arduino Kartı

KODLAR:

void setup()

{
pinMode(0,OUTPUT);
pinMode(1,OUTPUT);
pinMode(2,OUTPUT);
pinMode(3,OUTPUT);
pinMode(4,OUTPUT);
pinMode(5,OUTPUT);
pinMode(6,OUTPUT);
pinMode(7,OUTPUT);
pinMode(8,OUTPUT);
pinMode(9,OUTPUT);
pinMode(10,OUTPUT);
pinMode(11,OUTPUT);
pinMode(12,OUTPUT);
}

void loop()
{
digitalWrite(0,HIGH); // 0. pini HIGH yap
delay(1000); // 1 saniye bekle
digitalWrite(0, LOW); // 0. pini LOW yap
delay(1000); // 1 saniye bekle
// Sırasıyla tüm işlemleri diğer pinlere de uyguluyruz.
digitalWrite(1,HIGH);
delay(1000);
digitalWrite(1, LOW);
delay(1000);

digitalWrite(2,HIGH);
delay(1000);
digitalWrite(2, LOW);
delay(1000);

digitalWrite(3,HIGH);
delay(1000);
digitalWrite(3, LOW);
delay(1000);

digitalWrite(4,HIGH);
delay(1000);
digitalWrite(4, LOW);
delay(1000);

digitalWrite(5,HIGH);
delay(1000);
digitalWrite(5, LOW);
delay(1000);

digitalWrite(6,HIGH);
delay(1000);
digitalWrite(6, LOW);
delay(1000);

digitalWrite(7,HIGH);
delay(1000);
digitalWrite(7, LOW);
delay(1000);

digitalWrite(8,HIGH);
delay(1000);
digitalWrite(8, LOW);
delay(1000);

digitalWrite(9,HIGH);
delay(1000);
digitalWrite(9, LOW);
delay(1000);

digitalWrite(10,HIGH);
delay(1000);
digitalWrite(10, LOW);
delay(1000);

digitalWrite(11,HIGH);
delay(1000);
digitalWrite(11, LOW);
delay(1000);

digitalWrite(12,HIGH);
delay(1000);
digitalWrite(12, LOW);
delay(1000);
}
